On both Windows 10 and Windows 11, the ability to connect a second display can significantly enhance productivity, allowing users to multitask across various applications or enjoy immersive gaming experiences. While the setup process for an external monitor is generally user-friendly, there are instances where the operating system may struggle to recognize older displays or secondary monitors due to driver or hardware complications. Fortunately, several troubleshooting steps can be employed to swiftly resolve these issues, ensuring a seamless connection.
How to fix external monitor connection issues from Settings
Once you’ve confirmed that there are no physical issues with your connection, monitor, or computer, you can utilize the Settings app to manually prompt the system to detect the second monitor.

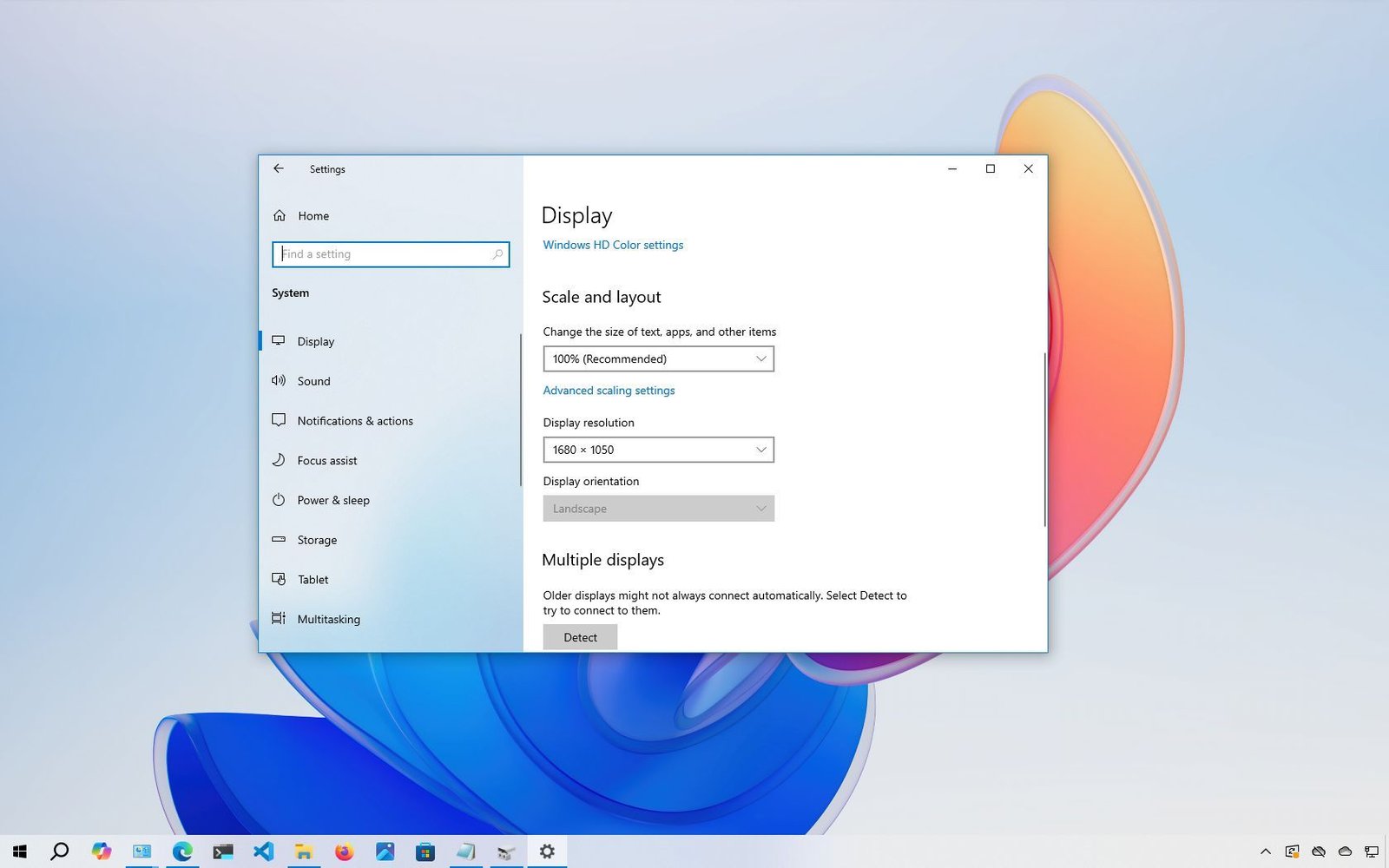

Force second display detection
To manually detect a second monitor on Windows 10, follow these steps:
- Open Settings.
- Click on System.
- Click on Display.
- Under the “Multiple displays” section, click the Detect button.
Quick note: If you only have one monitor connected, this option will not appear, as it is only available when multiple displays are connected.
After completing these steps, Windows 10 should successfully recognize the external monitor.
Connect wireless external display
For those looking to connect a wireless display as a secondary screen on Windows 10, the following steps will guide you:
- Open Settings.
- Click on Devices.
- Click on Bluetooth & other devices.
- Activate the Bluetooth toggle switch (if applicable).
- Click the Add Bluetooth or other device button.
- Select the “Wireless display or dock” option.
- Ensure the wireless display is powered on and discoverable, then select it from the list.
- Follow any additional on-screen instructions.
Upon completing these steps, the wireless display will be recognized as a new external monitor.
How to fix external monitor connection issues from latest graphics drivers
Issues with a buggy, outdated, or corrupted graphics driver can hinder the operating system’s ability to automatically detect a second monitor. The simplest solution is to update, reinstall, or roll back the driver.
Update graphics driver
To update the graphics card driver via Windows Update, follow these steps:
- Open Settings.
- Click on Update & Security.
- Click on Windows Update.
- Select the “View optional updates” option.
- Choose the Driver updates setting and check for any available graphics driver updates.
- Click the “Download and install” button.
Once completed, Windows Update will install the latest graphics driver, potentially resolving the external monitor detection issue. If no updates are available, consider visiting the manufacturer’s support website for the most recent driver version.
Reinstall graphics driver
If you suspect a corrupted video driver, you can reinstall it by following these steps:
- Open Start.
- Search for Device Manager and open the app.
- Expand the Display adapters section.
- Right-click the adapter and select Uninstall device.
- Ensure the “Delete the driver software from this device” option is unchecked (if applicable), then click Uninstall.
- Restart your computer.
- Open Device Manager again.
- Right-click your computer name and select “Scan for hardware changes”.
After these steps, Windows 10 should automatically reinstall the driver.
Rollback graphics driver
If a recent update has caused detection issues, rolling back to a previous driver version may help. To do this:
- Open Start.
- Search for Device Manager and open the app.
- Expand the Display adapters section.
- Right-click the graphics adapter and select Properties.
- Click the Driver tab.
- Click the Roll Back Driver button.
- Follow the prompts and restart your device.
Once completed, Windows 10 should resume rendering content on the external monitor.
Update graphics driver with manufacturer control panel
While Windows can install drivers for most graphics adapters, the latest versions are often available directly from manufacturers like NVIDIA, AMD, and Intel. To ensure you have the most up-to-date driver, consider using their respective control panel applications or downloading drivers from their support websites.
Check manufacturer and driver version
To verify the graphics card vendor and driver version on Windows 10, follow these steps:
- Open Start.
- Search for System Information and open the app.
- Expand the Components branch on the left pane.
- Select the Display category.
- Confirm the Adapter Type and Driver Version information.
With this information, you can accurately locate and install the correct driver.
How to fix external monitor connection issues on Windows 11
While many of the troubleshooting steps apply to Windows 11, some variations exist due to the updated interface.
Force external monitor detection
To manually detect an external monitor on Windows 11, follow these steps:
- Open Settings.
- Click on System.
- Navigate to the Display page on the right side.
- Click the Multiple displays setting.
- Click the Detect button.
After completing these steps, the system should successfully detect the external display.
Connect wireless external display
To connect a wireless display as a secondary screen on Windows 11, follow these steps:
- Open Settings.
- Click on Bluetooth & devices.
- Activate the Bluetooth toggle switch (if applicable).
- Click the Add device button.
- Select the “Wireless display or dock” option.
- Ensure the wireless display is turned on and discoverable, then select it from the list.
- Follow any additional on-screen instructions.
Upon completion, the display will be recognized as a new external monitor.
Update graphics driver
To update the graphics driver on Windows 11, follow these steps:
- Open Settings.
- Click on Windows Update.
- Navigate to the Advanced options page.
- Click on Optional updates.
- Select the newer graphics driver to install.
- Click the “Download & install” button.
After completing these steps, the system will download and install the latest graphics driver, addressing any detection issues with the external monitor.
FAQs
Here are some common questions regarding multi-monitor setups on Windows 10:
How do I rotate my monitor on Windows 10?
To rotate the monitor, right-click on the desktop and select “Display settings.” Scroll down to the “Display orientation” drop-down menu, and choose your desired orientation.
How do I use dual monitors on Windows 10?
Connect the second monitor, then use the “Windows key + P” shortcut to open the “Project” menu. Choose between PC screen only, Duplicate, Extend, or Second screen only.
How do I adjust monitor brightness on Windows 10?
To change the display brightness, open Settings > System > Display and use the “Brightness and color” slider.
How do I change the default monitor on Windows 10?
To extend Windows 10 to another monitor, use the “Windows key + P” shortcut and select “Extend.”
How do I adjust monitor size on Windows 10?
To change the monitor size, open Settings > System > Display and adjust the scale percentage under “Scale and layout.”
How do I calibrate a monitor on Windows 10?
To calibrate a monitor, search for “Calibrate display color” in the Start menu and follow the wizard to adjust settings.
Can I have different wallpapers on dual monitors on Windows 10?
To set different wallpapers, open Settings > Personalize > Background, right-click an image, and select “Set for monitor 1” or “Set for monitor 2.”
